Internal combustion engines are complex machines composed of hundreds of interacting parts, all synchronized with precision. Among these, the valve lifter—though small and often overlooked—plays an integral role in maintaining engine efficiency, performance, and longevity. But what exactly does a valve lifter do? How does it interact with other engine components? And what happens when it fails?
Let’s explore the inner workings of valve lifters, their function, importance, and what you need to know as a car owner or mechanic.
Definition and Basic Overview
A valve lifter, sometimes called a cam follower or tappet, is a cylindrical engine component located between the camshaft and the pushrod (in overhead valve engines), or directly beneath the camshaft (in overhead cam engines). Its primary job is to transfer motion from the rotating camshaft lobes to the engine’s valves, allowing them to open and close at precisely the right time.

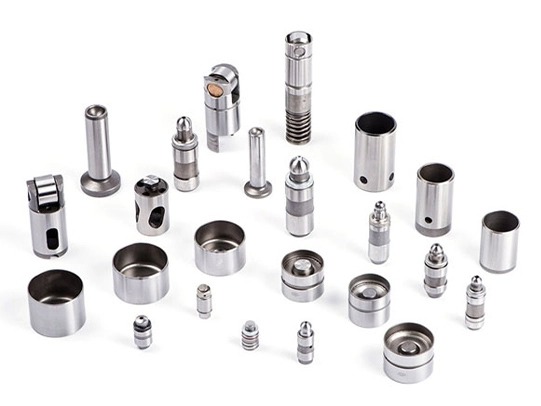

Valve lifters come in several types, such as:
Hydraulic lifters (most common in modern vehicles)
Solid/mechanical lifters
Roller lifters
Each type varies slightly in design and maintenance needs, but all serve the same core purpose—ensuring optimal valve timing by following the camshaft’s contour.
The Step-by-Step Process
To understand what a valve lifter does, we must examine the timing mechanism in a four-stroke engine. Here’s how it works step-by-step:
Camshaft Rotation: As the engine runs, the camshaft spins, driven by the crankshaft via a timing belt or chain.
Cam Lobe Action: The camshaft’s lobes are designed to push against the valve lifter at specific intervals.
Vertical Motion Transfer: When a lobe contacts a lifter, it pushes it upward. This motion then:
Activates a pushrod (in pushrod engines), which moves the rocker arm, eventually pushing the valve open.
Or directly pushes the valve stem in overhead cam engines.
Valve Opens and Closes: Once the cam lobe rotates past the lifter, spring tension causes the valve to close again.
In hydraulic lifters, a small reservoir of pressurized oil absorbs minor slack in the valvetrain, eliminating valve lash (gap between components) and reducing engine noise.
Engine Timing and Performance
Although small in size, the valve lifter is critical to the precise mechanical timing required for the engine to function efficiently. Here’s why it matters:
Maintains Accurate Valve Timing: Mistimed valve opening/closing can cause performance loss, poor fuel economy, or even engine damage.
Reduces Wear: Hydraulic lifters reduce metal-on-metal contact, lowering wear and tear on camshaft lobes and valve components.
Controls Engine Noise: Properly functioning lifters help minimize "ticking" sounds that come from valve lash or clearance issues.
Enhances Fuel Efficiency: By maintaining tight timing and eliminating unnecessary friction, valve lifters help improve combustion efficiency.
In high-performance engines, lifters are often custom-engineered to work at high RPMs without floating, ensuring reliable power delivery.
How to Detect Failure Early
When a valve lifter fails or begins to malfunction, the consequences can range from minor noise to serious mechanical breakdowns. Here are key symptoms to watch for:
One of the most noticeable signs of a faulty lifter is a ticking or tapping noise coming from the engine, especially during startup or idle. This happens when the lifter isn’t maintaining proper hydraulic pressure or lash.
Valve lifters that fail to open valves fully or on time can cause cylinders to misfire, leading to a rough idle, vibrations, and loss of engine power.
Modern vehicles may trigger a CEL if sensors detect valve timing discrepancies or misfires caused by faulty lifters.
Inefficient combustion due to improper valve action can lower MPG significantly.
If ignored, a bad valve lifter can cause the camshaft or valve to wear prematurely, or even result in a broken pushrod or bent valve—leading to costly repairs.
Here’s a breakdown of the three major types of valve lifters and their primary characteristics:
| Valve Lifter Type | Maintenance Required | Noise Level | Ideal For | Lifespan |
|---|---|---|---|---|
| Hydraulic Lifter | Low | Quiet | Daily driving, modern engines | 100,000+ miles |
| Mechanical Lifter | High (requires adjustment) | Louder | Racing engines, older cars | 50,000–80,000 miles |
| Roller Lifter | Moderate | Medium | Performance applications | 100,000+ miles |
Hydraulic lifters are self-adjusting, making them ideal for most consumer vehicles. Mechanical lifters, while louder and needing manual lash adjustments, offer precise valve control at high speeds. Roller lifters use a roller tip to reduce friction and enhance performance.
Driving with a bad lifter can damage the camshaft, pushrod, rocker arm, or even valves. It also leads to inefficient combustion, increased fuel use, and engine misfires.
Yes, but it's generally advised to replace all lifters at once, especially if the engine has high mileage. Replacing only one may not solve underlying issues.
Costs vary by engine type, but labor is intensive, making it moderately expensive. Expect anywhere from $300 to $1000+ depending on vehicle model and mechanic rates.
Most internal combustion engines use some form of valve lifter, but the design can vary—especially in overhead cam (OHC) engines, where lifters may be integrated or eliminated.
Understanding what a valve lifter does is more than just technical trivia—it’s key to understanding engine health. These small components play a massive role in ensuring engine longevity, performance, and fuel efficiency.
Regular oil changes, proper engine maintenance, and early attention to unusual noises can prolong the life of your valve lifters and the entire valvetrain system. If you're hearing strange ticking sounds or noticing misfires, don’t ignore the signs—it could be your valve lifter asking for attention.
