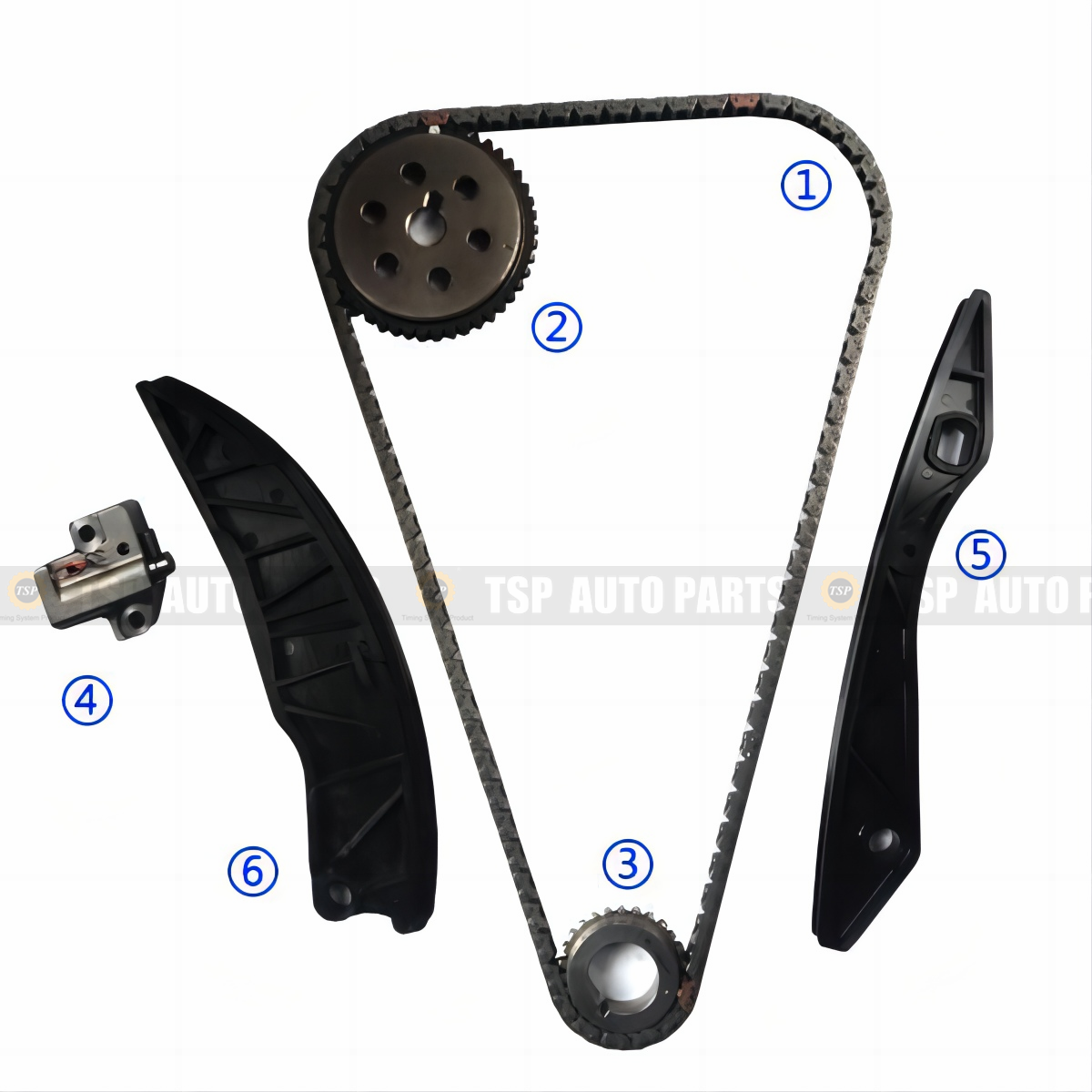

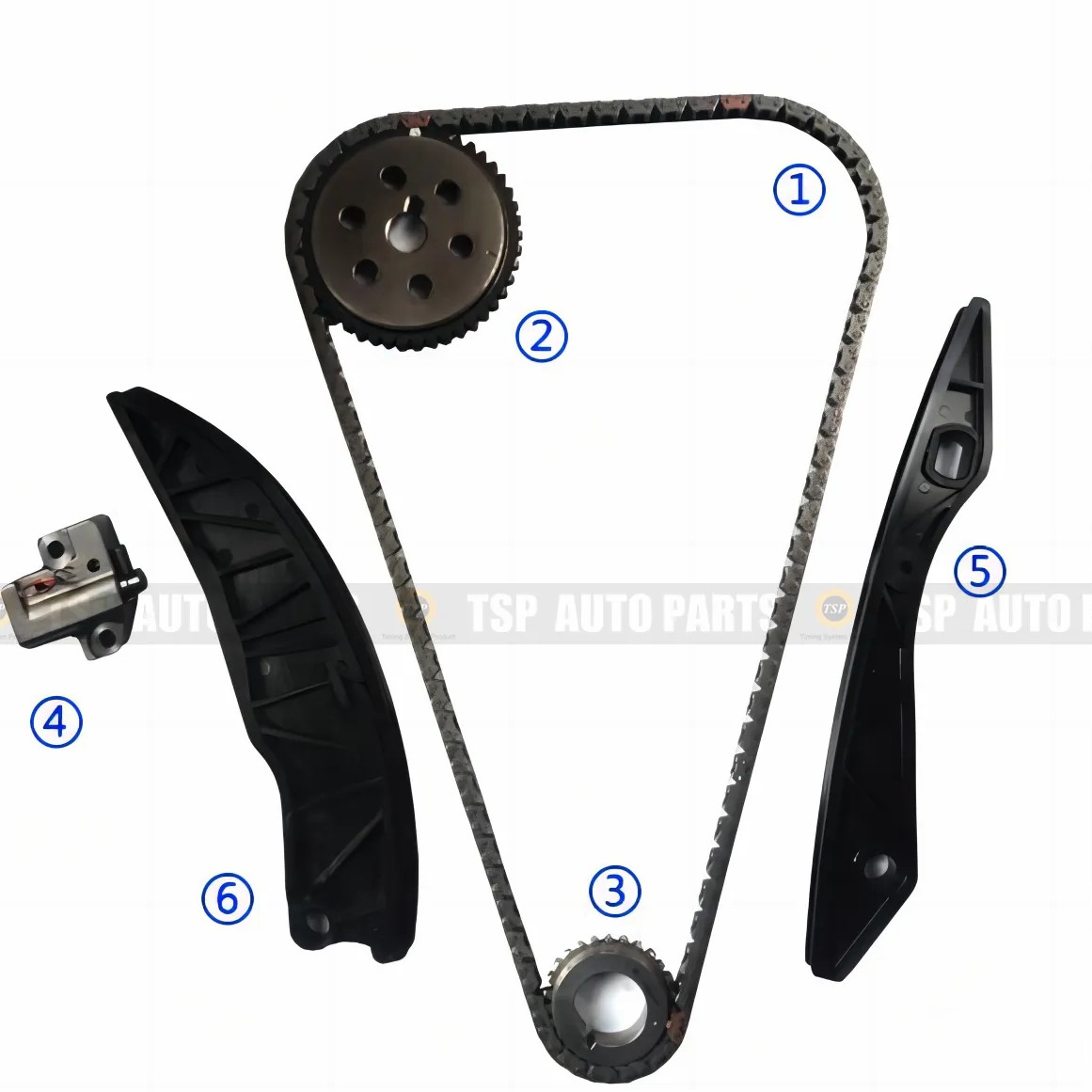

TK-HY009
 | INCLUDING: 1,TIMING CHAIN 2,CAM SPROCKET 3,CRANK SPROCKET 4,TENSIONER 5,6,GUIDE |
KEY FEATURES:
Precision Fit: Our Timing Chain Kit is expertly designed to be compatible with a wide range of [HYUNDAI AND KIA] models, ensuring it perfectly aligns with your vehicle’s engine specifications.
Comprehensive Components: Each kit is equipped with all the crucial components needed for a complete timing system repair, including the timing chain, tensioners, guides, and gaskets. Every part is carefully chosen for its superior fit and dependability.
Premium Materials: Crafted from top-grade materials, our Timing Chain Kit is built to endure the demands of daily driving, offering outstanding wear resistance and durability.
Optimized Engine Performance: This kit is engineered to restore your engine’s timing accuracy, minimizing wear and tear, and enhancing overall engine efficiency for smoother operation and prolonged engine life.
Guaranteed Quality: Our Timing Chain Kit not only meets but exceeds industry standards, ensuring you receive a product that is both reliable and durable. We back our quality with a comprehensive warranty.
APPLICATION:
| MAKE | MODEL | ENGINE | YEAR |
| HYUNDAI | G4FA 1.4L; G4FC/G4FG 1.6L | ||
| HYUNDAI | i20 1.4L | 09-12 | |
| HYUNDAI | i30 1.4L/1.6L | 09-13 | |
| HYUNDAI | IX20 1.4L | 10-15 | |
| KIA | Carens | 1.6L | 09-13 |
| KIA | Ceed | 1.4L | 07-13 |
| KIA | Pro Ceed | 1.4L | 08-13 |
| KIA | Soul | 1.6L | 09-12 |
| KIA | Venga | 1.4L/1.6L | 09- |

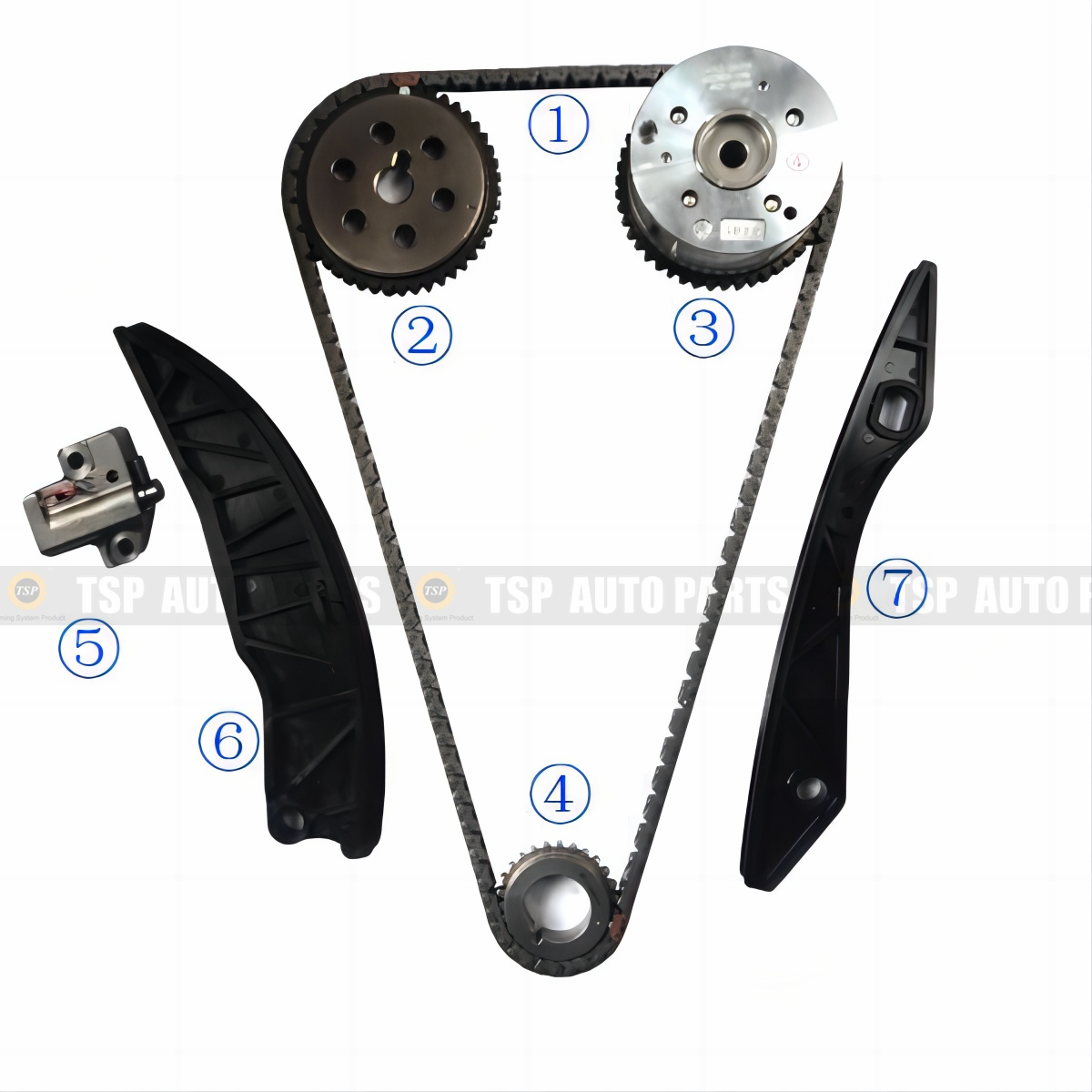

TK-HY009-V
 | INCLUDING: 1,TIMING CHAIN 2,CAM PHASER(VVT) 3,CAM SPROCKET 4,CRANK SPROCKET 5,TENSIONER 6,7,GUIDE |
APPLICATION:
| MAKE | MODEL | ENGINE | YEAR |
| HYUNDAI | G4FA 1.4L; G4FC/G4FG 1.6L | ||
| HYUNDAI | i20 1.4L | 09-12 | |
| HYUNDAI | i30 1.4L/1.6L | 09-13 | |
| HYUNDAI | IX20 1.4L | 10-15 | |
| KIA | Carens | 1.6L | 09-13 |
| KIA | Ceed | 1.4L | 07-13 |
| KIA | Pro Ceed | 1.4L | 08-13 |
| KIA | Soul | 1.6L | 09-12 |
| KIA | Venga | 1.4L/1.6L | 09- |

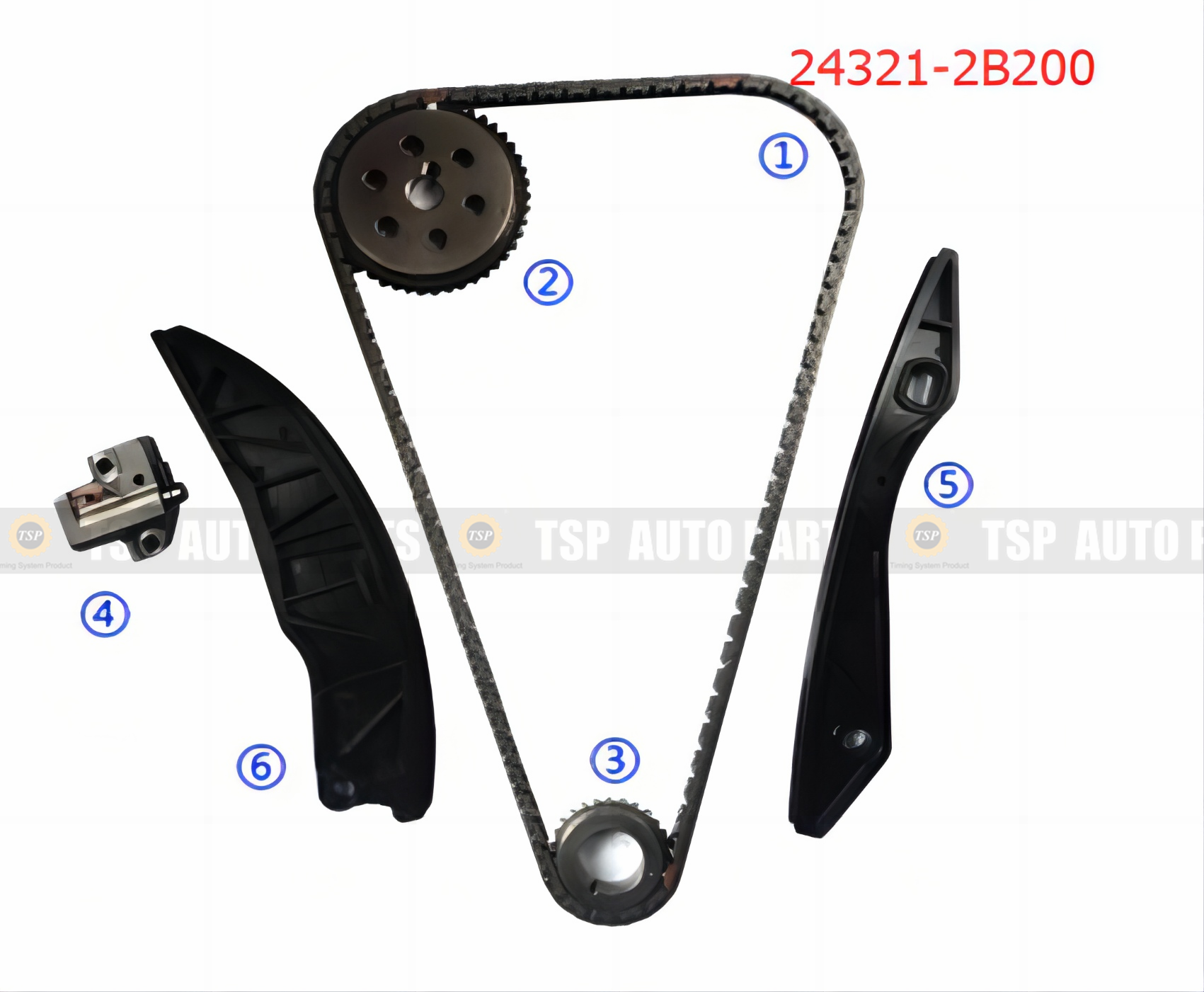

TK-HY009-1
 | INCLUDING: 1,TIMING CHAIN 24321-2B200 2,CAM SPROCKET 3,CRANK SPROCKET 4,TENSIONER 5,6,GUIDE |
APPLICATION:
| MAKE | MODEL | ENGINE | YEAR |
| HYUNDAI | ELANTRA | GAS DOHC 2.0L | 06-16 |
| KIA | Soul | GAS DOHC 2.0L | 10-12 |

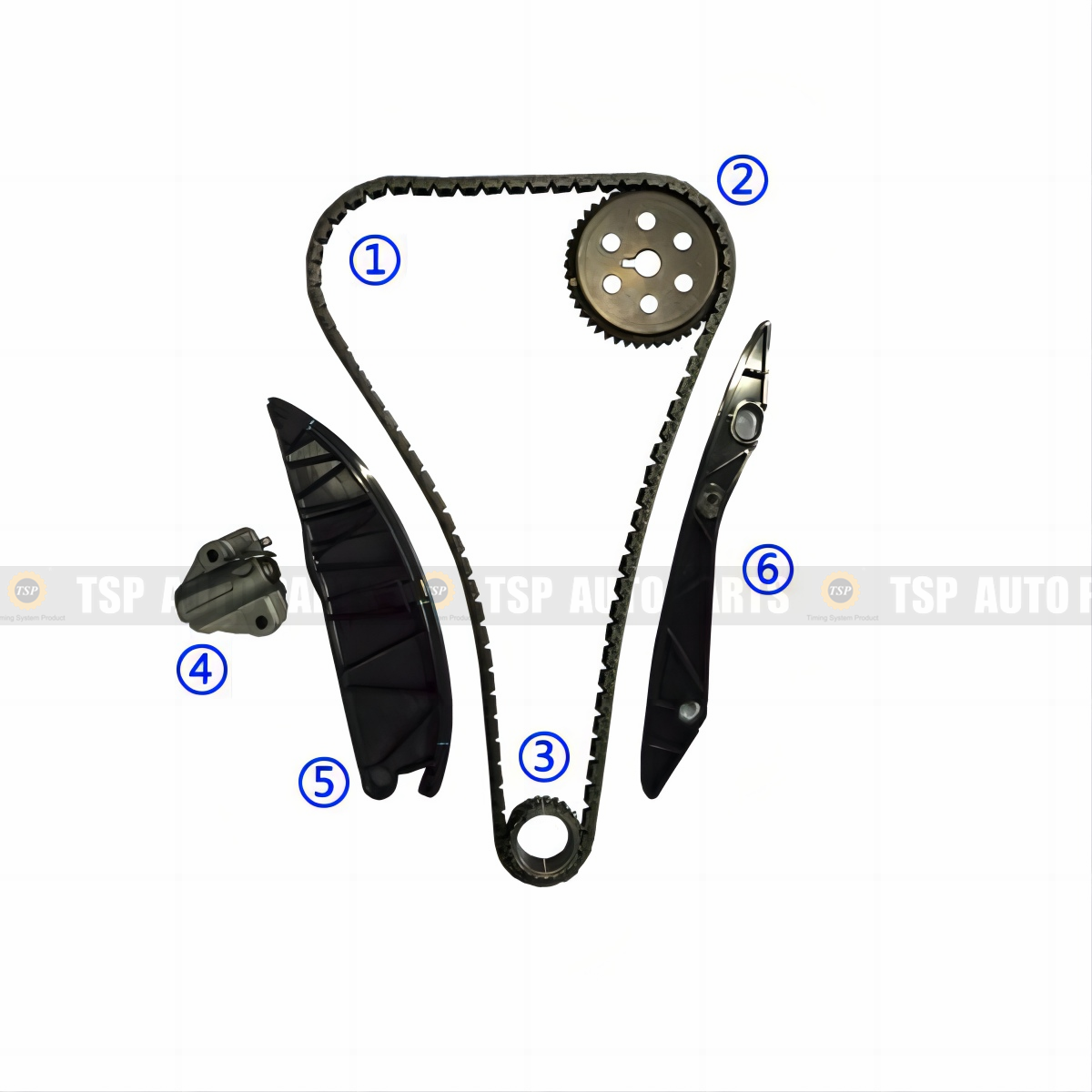

TK-HY009-2
 | INCLUDING: 1,TIMING CHAIN 2,CAM SPROCKET 3,CRANK SPROCKET 4,TENSIONER 5,6,GUIDE |
APPLICATION:
| MAKE | MODEL | ENGINE | YEAR |
| HYUNDAI | G4FA NEW 1.4L; G4FC/G4FG NEW 1.6L | ||
| HYUNDAI | ELANTRA RAINER y | 1.6L | 2014- |
| HYUNDAI | IX25 | 1.6L | 2014- |

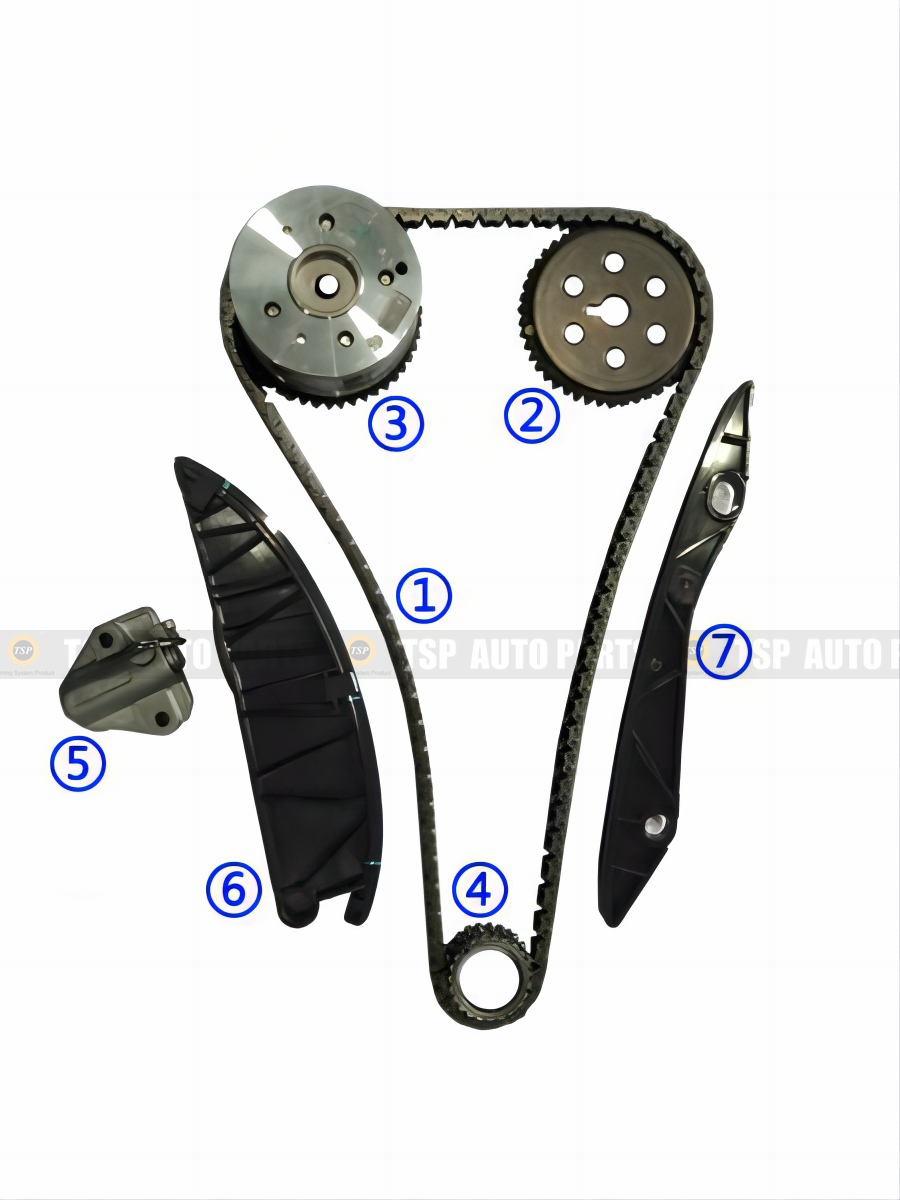

TK-HY009-2-V
 | INCLUDING: 1,TIMING CHAIN 2,CAM PHASER(VVT) 3,CAM SPROCKET 4,CRANK SPROCKET 5,TENSIONER 6,7,GUIDE |
APPLICATION:
| MAKE | MODEL | ENGINE | YEAR |
| HYUNDAI | G4FA NEW 1.4L; G4FC/G4FG NEW 1.6L | ||
| HYUNDAI | ELANTRA RAINER y | 1.6L | 2014- |
| HYUNDAI | IX25 | 1.6L | 2014- |
